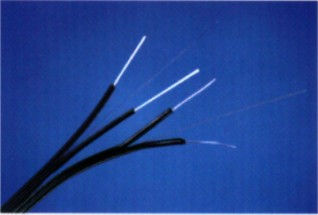

Fiber Optic Cable
Characteristic
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

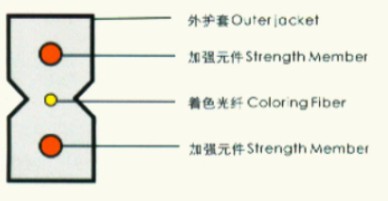

2.Two parallel strength members ensure good performance of crush resistance to protect the fiber.
3.Simple structure, light weight and high practicability.
4.Novel flute design, easily strip and splice, simplify the installation and maintenance.
Geometrical Characteristics
|
Fiber Core |
1 |
2 |
1 |
4 |
|
Cable Diameter(mm) |
2.0×3.0 |
2.0×3.4 |
2.0×3.8 |
2.0×4.0 |
|
Cable Weight(kg/km) |
8 |
8.5 |
9 |
10 |
Mechanical Characteristics
|
Max Load(N) |
Long Term |
30 |
30 |
30 |
30 |
||
|
Short Term |
60 |
60 |
60 |
60 |
|||
|
Bending Radius(CM) |
Dynamic |
30 |
30 |
30 |
30 |
||
|
Static |
15 |
15 |
15 |
15 |
|||
Fiber
|
Fiber Type(core/cladding dimension) |
G.657 |
Transmission Characteristics
|
|
SMF |
|
1310/1550(nm) |
|
|
Max Attenuation(dB/km) |
0.45/0.30 |
|
AVG Attenuation(dB/km) |
0.40/0.25 |
|
Minimum Bandwidth(MHz.km) |
----- |
Environmental Characteristics
|
Storage Operating Temperature |
-20℃～+60℃ |
.jpg)
