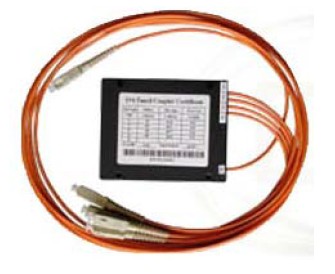

Optical Fiber Splitter
KSUN adopts the FBT technique to produce the basic 1X2 coupler unit with the high-level performance. By grade connecting the basic 1X2 coupler unit, the Star/Tree coupler eliminates the component pattern sensitivity. It is widely used in the LAN, PON, other optical fiber communication systems and optical fiber sensor systems.
Features
• Low PDL
• Low Excess Loss
• Good environmental Stability
Applications
• Optical Fiber Communication Systems
• Optical Fiber CATV
• Optical Amplifiers
• Optical Access Networks/LAN
• Monitoring Systems
• Optical Fiber Sensor
Specifications
|
Specifications MODEL |
Multi-Mode |
|||
|
Wavelength(nm) |
850/1300 |
|||
|
Star Structure |
2*2 |
4*4 |
8*8 |
16*16 |
|
Tree Structure |
1*2 |
1*4 |
1*8 |
1*16 |
|
Typical Excess Loss(dB) |
0.7 |
1.5 |
2.0 |
3.0 |
|
Max Insertion Loss(dB) @50/50 |
4.2 |
8.4 |
11.8 |
16.0 |
|
Uniformity(dB) |
0.5 |
1.0 |
1.5 |
2.0 |
|
Fiber Type |
Coring 50/125 or 62.5/125 |
|||
|
Operating Temperature(℃) |
-40~+75 |
|||
|
Storage Temperature(℃) |
-40~+85 |
|||
|
Packing Type |
Customer Specify |
|||
|
Industry Standard |
Telcordia GR-1221-CORE |
|||
