Optical Test Instrument

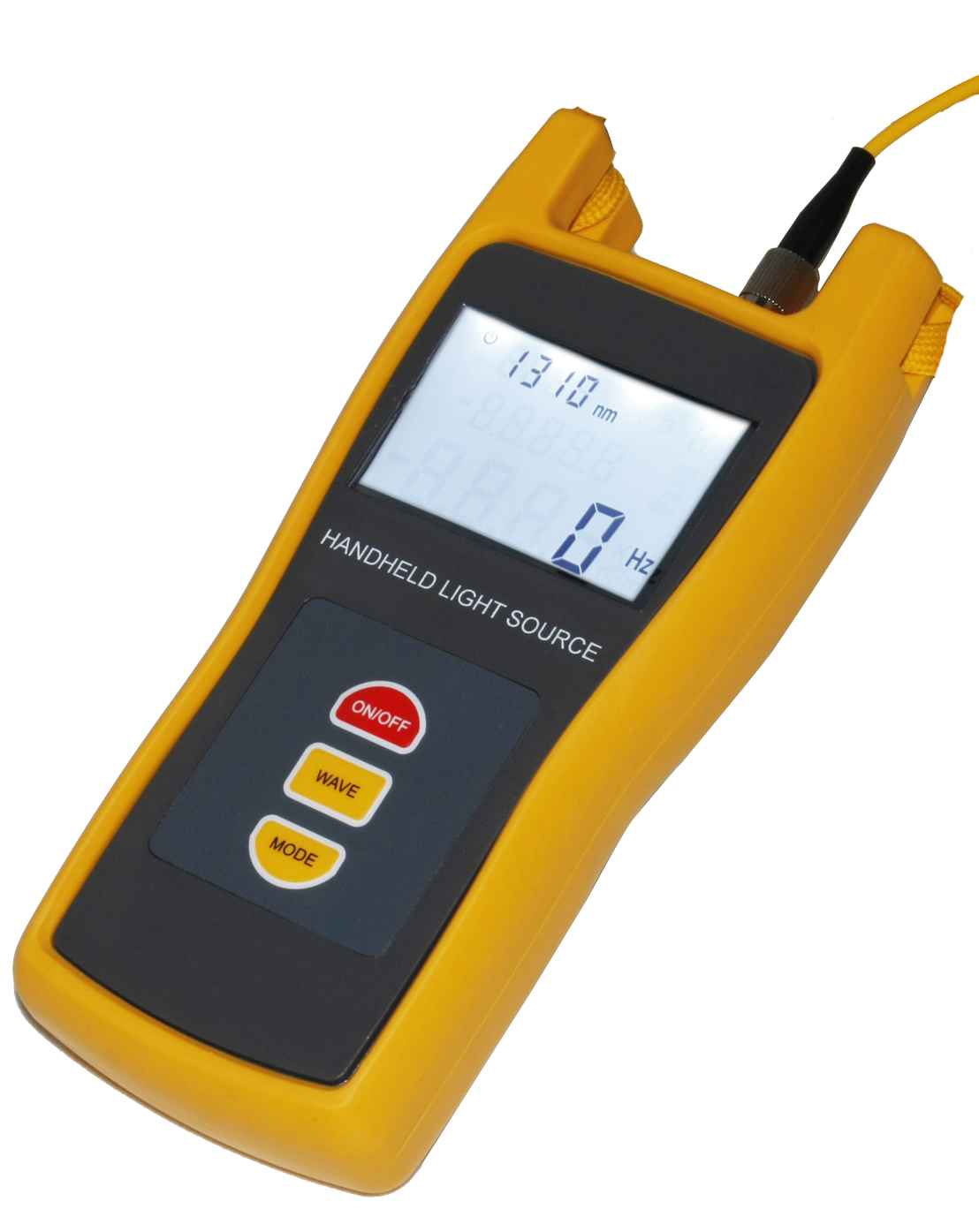

KSUN3109 optical light source
can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the KSUN3208 optical power meter, it is a perfect solution for the fiber optic network characterization.
Features
• Provides 1~4 output wavelengths which can be optional according to customer’s needs
• CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz
modulation output at other wavelengths.
• High stability of the output power
• Stable output wavelength
• Backlight LCD display supports night operation
• Compact size and decent appearance
• Large LCD, easy operation
• Alternative 10 minutes Auto-off function conserving battery life
Applications
• Maintenance in Telecom
• Maintenance CATV
• Fiber Optic Lab Testing
• Other Fiber Optic Measurements
Specifications
| Type |
KSUN3109 |
|||
|
Wavelengths(nm) |
650 |
1310/1550 |
850/1300 |
850/1300/1310/1550 |
|
Emitter Type |
FP-LD,LED or others please specify |
|||
|
Typical Output Power (dBm) |
0 |
-7dBm for LD, -20dBm for LED |
||
|
Spectral Width(nm) |
|
|||
|
Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
|||
|
Modulation Frequencies |
CW,2Hz |
CW,270Hz,1KHz,2KHz |
||
|
Optical Connector |
FC/ universal adaptor |
FC/PC |
||
|
Power Supply |
Alkaline Battery(3 AA 1.5V batteries) |
|||
|
Battery Operating Time(hour) |
45 |
|||
|
Operating Temperature(℃) |
-10~+60 |
|||
|
Storage Temperature(℃) |
-25~+70 |
|||
|
Dimension(mm) |
175x82x33 |
|||
|
Weight (g) |
295 |
|||
|
Joinwit Recommendation |
||||
|
KSUN3109 Handheld Light Source is designed for optimal use with KSUN3208 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable. |
||||
Standard Packages
| MODEL |
INCLUDES |
|
All KSUN3109 Models |
KSUN3109 Optical Light Source, Protective Rubber Boot, 3pcs 1.5V batteries,User Manual, Cotton swabs and Soft carrying case. |
