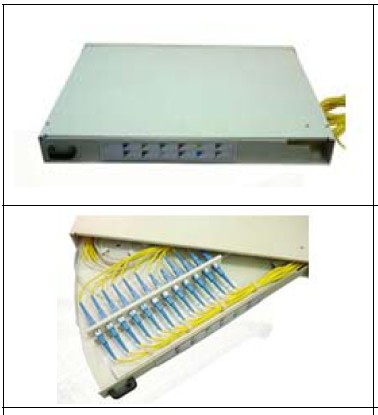

Optical Distribution Frame
Features
• Used to the branch connection of optical cable termination
• 19” Standard Structure, Rack mounting
• Available for the installation of adaptors
• Dustproof Design
• Rotary Structure, Easy for Operation.
Specifications
Type |
Dimension |
Material |
Max Capacity |
Weight |
Fixed Type |
430x300x45 |
Cold Rolled Steel Sheet |
Simplex:24 cores Duplex:48 cores |
3.9 kgs |
Rotary Type |
430x300x45 |
Cold Rolled Steel Sheet |
Simplex:12 cores Duplex:24 cores |
4.5 kgs |
