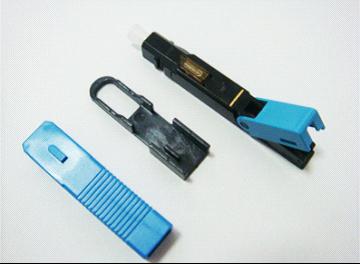

SC Optical Fast Connector
Technical Specifications：
· DATA SHEET
|
ITEM |
Technical Parameters |
|
Applicable for |
3.1 x 2.0 mm butterfly cable |
|
Optical fiber diameter |
125μm ( 657A & 657B ) |
|
Tight buffer diameter |
250μm |
|
Fiber mode |
single-mode& |
|
Operation time |
About 15s ( no fiber cut ) |
|
Insert loss |
1310nm & 1550nm |
|
Return loss |
≤ 40dB |
|
The success rate |
>98% |
|
The number of assembly |
>10 次 |
|
Fastening strength of naked fiber |
>5 N |
|
Tensile strength |
>50 N |
|
Using temperature |
-40～+85℃ |
|
On-line tensile strength (30 N) |
△ IL ≤ 0.3dB |
|
Mechanical durability (500 times) |
△ IL ≤ 0.3dB |
|
Drop-off test |
△ IL ≤ 0.3dB |
· Application for:FTTx,Connectingup Renovation of Computer/controlling Room.
